Recombinant Human PDCD1 protein, His-tagged (HPLC verified)

PRODUCTS

Home / Products / Recombinant Proteins / Recombinant Human PDCD1 protein, His-tagged (HPLC verified)

Recombinant Human PDCD1 protein, His-tagged (HPLC verified)

PDCD1 Related Products

Price Inquiry

Welcome! For price inquiries, please feel free to contact us through the form below. We will get back to you as soon as possible.

Cat.No. : PDCD1-332H
Product Overview : Recombinant Human PDCD1 (Leu25-Gln167) protein (HPLC verified) was fused to His-tag at C-terminus and expressed in human 293 cells (HEK293).
Description : Programmed cell death protein 1 (PD-1) is also known as CD279 and PDCD1, is a type I membrane protein and is a member of the extended CD28/CTLA-4 family of T cell regulators. PDCD1 is expressed on the surface of activated T cells, B cells, macrophages, myeloid cells and a subset of thymocytes. PD-1 has two ligands, PD-L1 and PD-L2, which are members of the B7 family. PD-L1 is expressed on almost all murine tumor cell lines, including PA1 myeloma, P815 mastocytoma, and B16 melanoma upon treatment with IFN-γ. PD-L2 expression is more restricted and is expressed mainly by DCs and a few tumor lines. PD1 inhibits the T-cell proliferation and production of related cytokines including IL-1, IL-4, IL-10 and IFN-γ by suppressing the activation and transduction of PI3K/AKT pathway. In addition, coligation of PD1 inhibits BCR-mediating signal by dephosphorylating key signal transducer. In vitro, treatment of anti-CD3 stimulated T cells with PD-L1-Ig results in reduced T cell proliferation and IFN-γ secretion. Monoclonal antibodies targeting PD-1 that boost the immune system are being developed for the treatment of cancer.
Source : HEK293
Species : Human
Tag : His
Predicted N Terminal : Leu25
Form : Lyophilized from 0.22 μm filtered solution in PBS, pH7.4, 10% trehalose.
Molecular Mass : The protein has a calculated MW of 16.8 kDa. The protein migrates as 31-44 kDa under reducing (R) condition (SDS-PAGE) due to glycosylation.
Protein length : Leu25-Gln167
Endotoxin : Less than 1.0 EU per μg by the LAL method.
Purity : >95% as determined by SDS-PAGE.
Storage : For long term storage, the product should be stored at lyophilized state at -20 centigrade or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
-20 to -70 centigrade for 12 months in lyophilized state;
-70 centigrade for 3 months under sterile conditions after reconstitution.
Reconstitution : It is recommended that sterile water be added to the vial to prepare a stock solution of 0.2 ug/ul. Centrifuge the vial at 4ºC before opening to recover the entire contents.
SDS-PAGE of PDCD1-332H :

Human PD-1, His Tag (HPLC verified) on SDS-PAGE under reducing (R) condition. The gel was stained overnight with Coomassie Blue. The purity of the protein is greater than 95%.

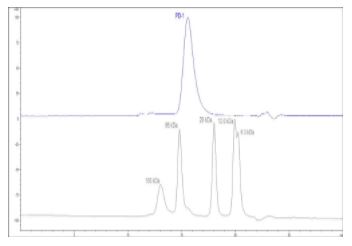

SEC-HPLC of PDCD1-332H :

The purity of Human PD-1, His Tag (HPLC verified) was greater than 90% as determined by SEC-HPLC.

Bioactivity-ELISA :

Immobilized Human PD-1, His Tag (HPLC verified) at 2 μg/mL (100 μL/well) can bind Human PD-L2, Mouse IgG1 Fc Tag with a linear range of 10-156 ng/mL (Routinely tested).

Bioactivity-ELISA of PDCD1-332H :

Immobilized Human PD-1, His Tag (HPLC verified) at 2 μg/mL (100 μL/well) can bind Nivolumab with a linear range of 0.1-3 ng/mL (Routinely tested).

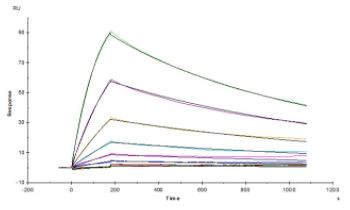

Bioactivity-SPR of PDCD1-332H :

Opdivo (Nivolumab) captured on CM5 chip via anti-human IgG Fc antibodies surface, can bind Human PD-1, His Tag (HPLC verified) with an affinity constant of 4.94 nM as determined in a SPR assay (Biacore T200) (Routinely tested).

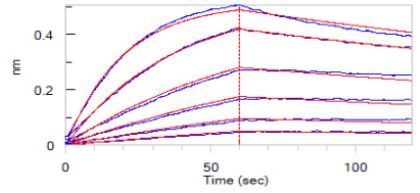

Bioactivity-BLI of PDCD1-332H :

Loaded Human PD-1, His Tag (HPLC verified) on HIS1K Biosensor, can bind Human PD-L1, Fc Tag (HPLC verified) with an affinity constant of 38.9 nM as determined in BLI assay (ForteBio Octet Red96e) (QC tested).

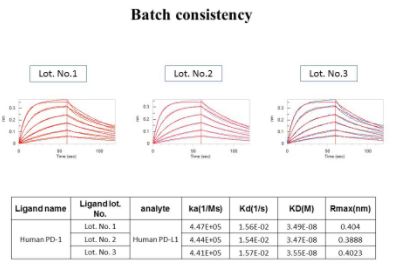

Batch consistency of Bioactivity-BLI

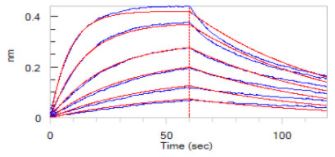

Loaded Human PD-1, His Tag (HPLC verified) on HIS1K Biosensor, can bind Human PD-L2, Fc Tag (HPLC verified) with an affinity constant of 16.3 nM as determined in BLI assay (ForteBio Octet Red96e) (QC tested).

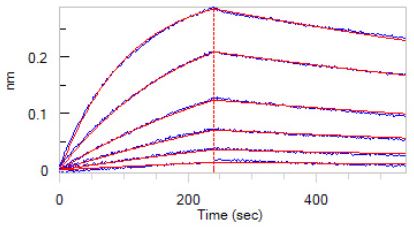

Loaded Human PD-1, His Tag (HPLC verified) on HIS1K Biosensor, can bind Human PD-L2, Fc Tag (HPLC verified) with an affinity constant of 16.3 nM as determined in BLI assay (ForteBio Octet Red96e) (QC tested).

Gene Name : PDCD1
Official Symbol : PDCD1
Synonyms : PDCD1; programmed cell death 1; programmed cell death protein 1; CD279; PD1; protein PD-1; PD-1; SLEB2; hPD-1; hPD-l
Gene ID : 5133
mRNA Refseq : NM_005018
Protein Refseq : NP_005009
MIM : 600244
UniProt ID : Q15116
